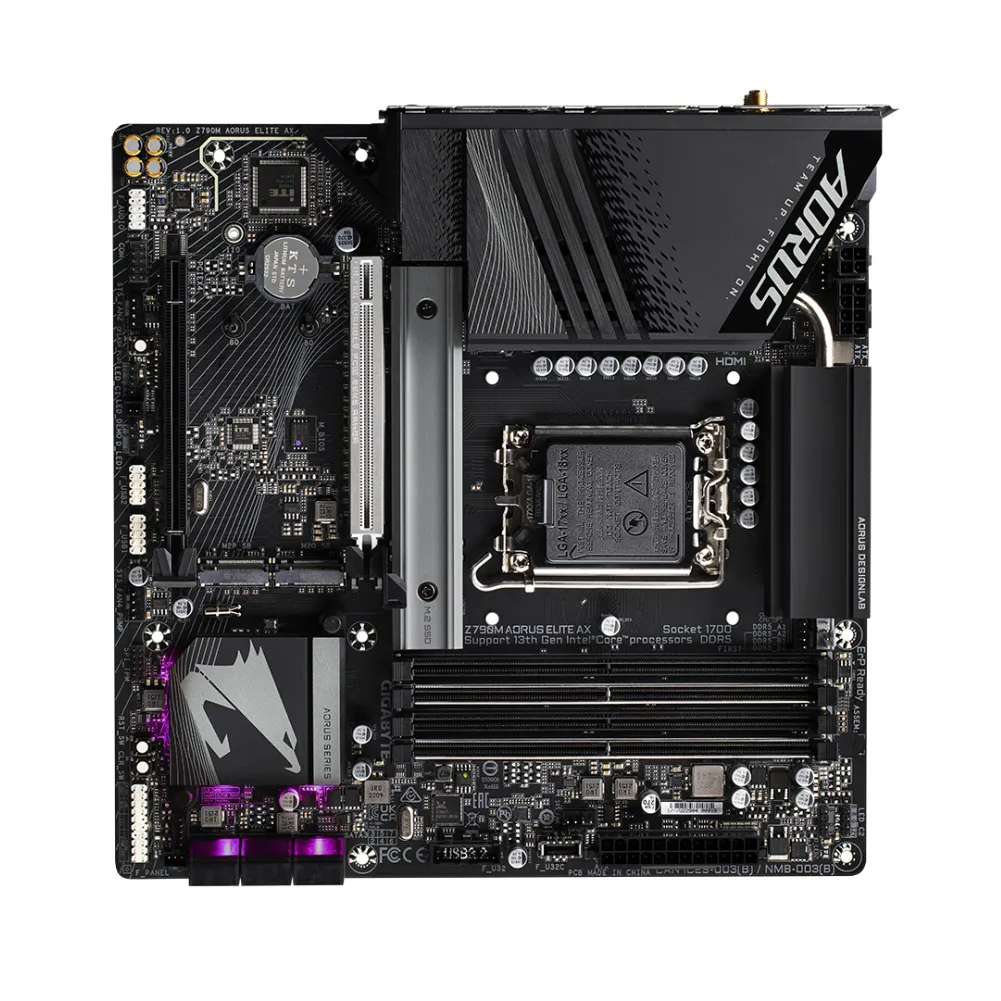

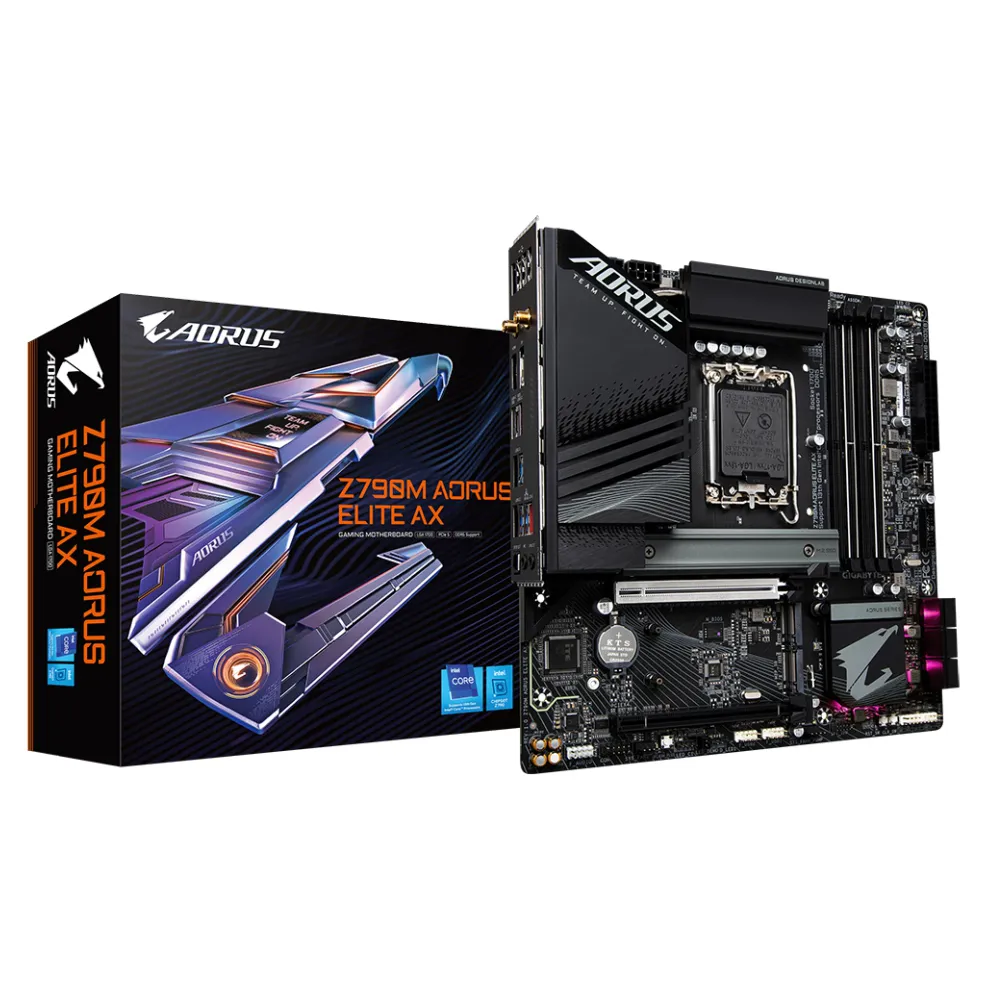

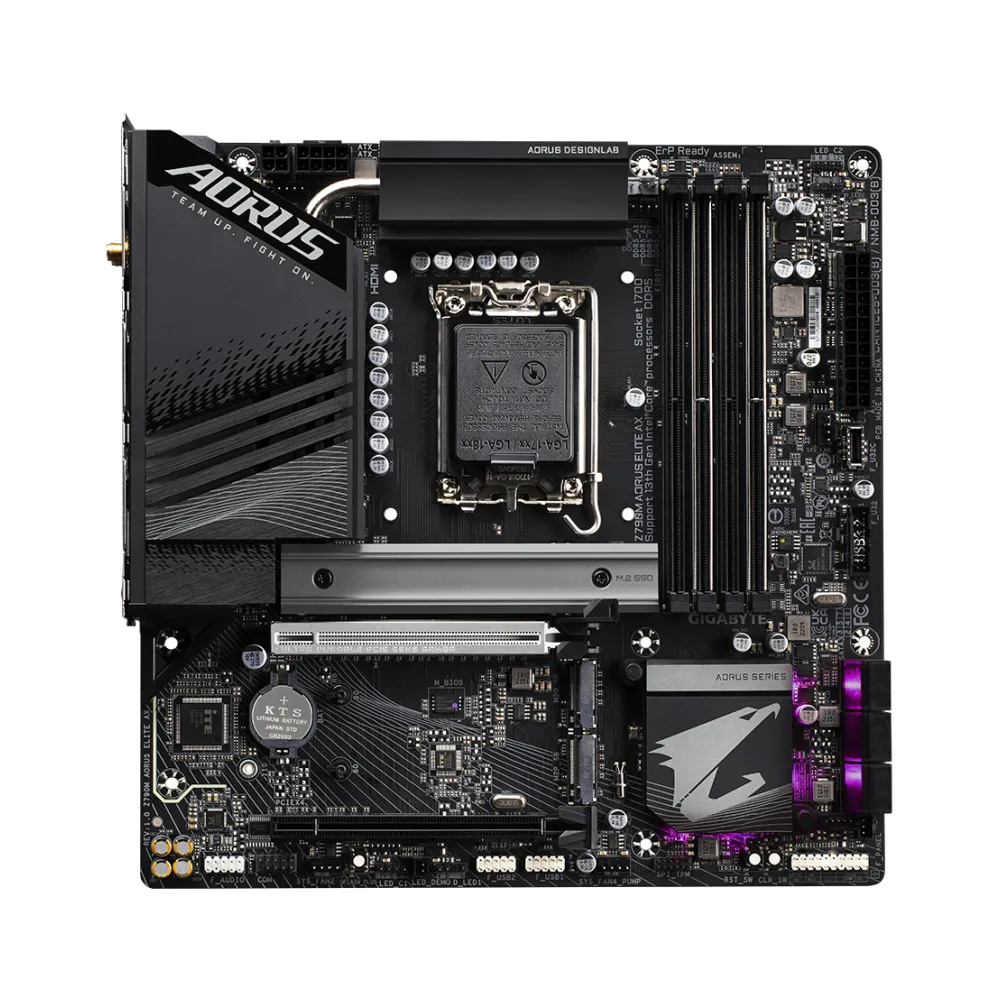

PLACA MÃE GIGABYTE Z790M AORUS ELITE AX, INTEL LGA 1700, MATX, DDR5 – Z790M AORUS ELITE AX

Descrição

PLACA MÃE GIGABYTE Z790M AORUS ELITE AX, INTEL LGA 1700, MATX, DDR5 – Z790M AORUS ELITE AX

Características:

– Marca: Gigabyte

– Modelo: Z790M AORUS ELITE AX

Especificações:

CPU:

– LGA1700 socket: Support for the 13th and 12th Generation Intel® Core?, Pentium® Gold and Celeron® Processors

– L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset:

– Intel® Z790 Express Chipset

Memória:

– Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

– Dual channel memory architecture

– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

– Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Gráficos Onboard:

Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Áudio:

– Realtek® ALC1200 CODEC

– High Definition Audio

– 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN:

– Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:

– Intel® Wi-Fi 6E AX211

– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Slots de Expansão:

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

– Support for AMD CrossFire? technology

Interface de Armazenamento:

CPU:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

– 6 x SATA 6Gb/s connectors

– RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

– RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB:

Chipset:

– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+2 USB 2.0 Hubs:

– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos I/O:

– 1 x 24-pin ATX main power connector

– 1 x 8-pin ATX 12V power connector

– 1 x 4-pin ATX 12V power connector

– 1 x CPU fan header

– 1 x water cooling CPU fan header

– 3 x system fan headers

– 1 x system fan/water cooling pump header

– 2 x addressable LED strip headers

– 2 x RGB LED strip headers

– 3 x M.2 Socket 3 connectors

– 6 x SATA 6Gb/s connectors

– 1 x front panel header

– 1 x front panel audio header

– 1 x USB Type-C® header, with USB 3.2 Gen 2 support

– 1 x USB 3.2 Gen 1 header

– 2 x USB 2.0/1.1 headers

– 2 x Thunderbolt? add-in card connectors

– 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

– 1 x serial port header

– 1 x reset button

– 1 x Q-Flash Plus button

– 1 x Clear CMOS button

– 1 x reset jumper

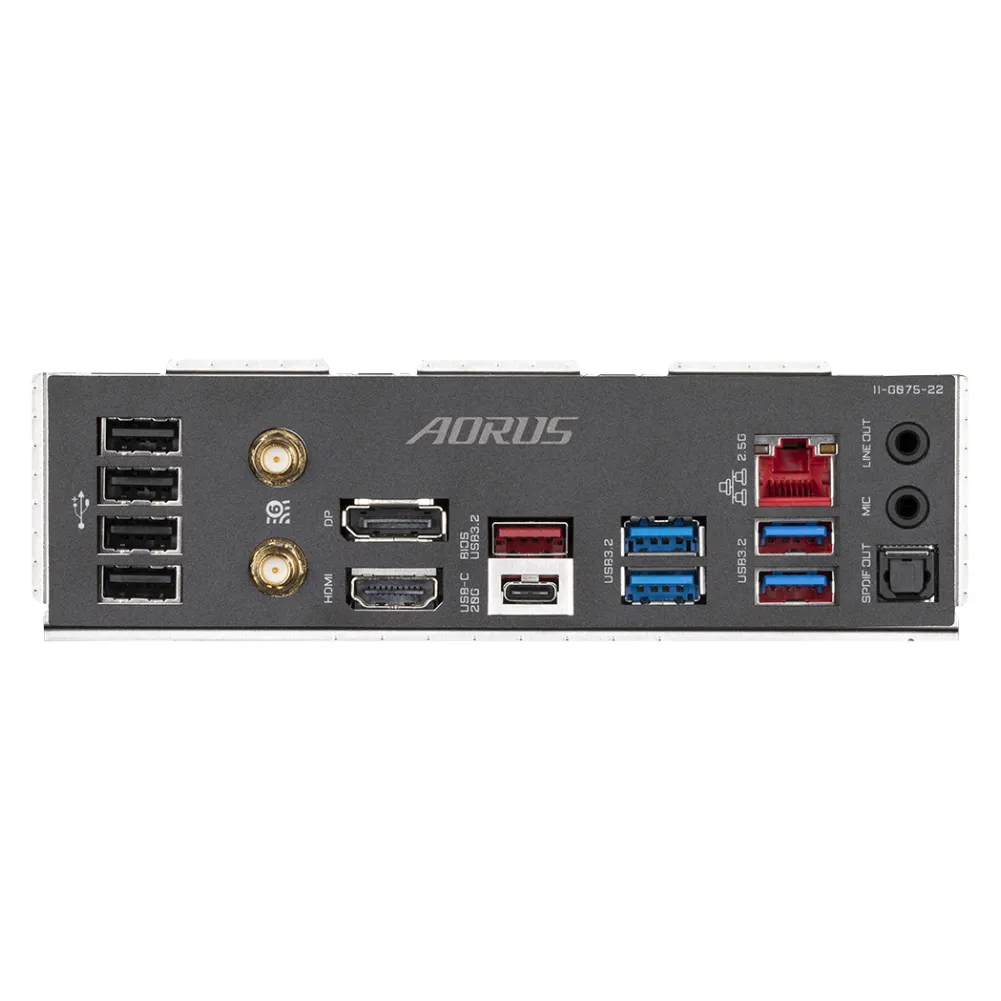

Conectores Painel Traseiro:

– 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

– 1 x USB 3.2 Gen 2 Type-A port (red)

– 4 x USB 3.2 Gen 1 ports

– 4 x USB 2.0/1.1 ports

– 2 x SMA antenna connectors (2T2R)

– 1 x HDMI 2.0 port

– 1 x DisplayPort

– 1 x RJ-45 port

– 1 x optical S/PDIF Out connector

– 2 x audio jacks

Controlador I/O:

– iTE® I/O Controller Chip

Monitoramento H/W:

– Voltage detection

– Temperature detection

– Fan speed detection

– Water cooling flow rate detection

– Fan fail warning

– Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:

– 1 x 256 Mbit flash

– Use of licensed AMI UEFI BIOS

– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas:

– Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

– Support for Q-Flash

– Support for Q-Flash Plus

– Support for Smart Backup

Pacote de Software:

– Norton® Internet Security (OEM version)

– LAN bandwidth management software

Sistema Operacional:

– Support for Windows 11 64-bit

– Support for Windows 10 64-bit

Fator Forma:

– Micro ATX Form Factor; 24.4cm x 24.4cm

Garantia:

1 ano de garantia
